Print your own labels
The Epson C3500 colour label printer allows you to easily customise and print your own colour labels. Whether it's printing packaging labels with colourful logos and pictures or wristband, tickets and ID cards with important barcodes and product information, this printer ensures you can print it all from one machine. It also helps you conform with GHS international chemical labelling guidelines, as labels can be printed on-demand without using pre-printed templates.
High-quality and durable
Thanks to the individual pigment ink cartridges of the Epson C3500 label printer , you can create fast-drying, highly detailed labels that are smudge, water and fade resistant. Not only will your labels look great, but the pigment ink's long-lasting, durable qualities make it perfect for a wide variety of environments.
Easy-to-use 4-colour label printer
With the Epson C3500 Colour Label Printer you can easily print on a wide selection of materials, including matte and glossy coated paper and filmic labels. This means you can create exactly the type of labels you need. The LCD screen displays ink levels and printer status information, while front operation and easy setup software means you can operate the printer without specialist training.
Saving you money
Thanks to individual pigment ink cartridges, the TM-C3500 label printer is ideal for cutting printing costs with its low cost-per-label, as you only need to replace the colour used.
Standard Features
• Compact, robust design for commercial use
• High print speed of up to 103mm per second
• High-quality, four-colour inkjet printing (CMYK)
• Individual ink cartridges for efficient use of ink
• Supports all major label applications
• Meets BS5609 certification2
• USB and Ethernet interfaces
| Printing Method | Epson Micro Piezo™ Serial inkjet printer |
| Nozzle Configuration | 360 Nozzles per colour |
| Colours | Black, Cyan, Yellow, Magenta |
| Ink Technology | DURABrite™ Ultra |
| Category | Desktop colour label printer |
| Printing Speed | Max. 103 mm/sec at 360 x 360 dpi (printing width 56 mm) |
| Printing Resolution | Max. 720 x 360 dpi |
| Printing Width | max. 104 mm |
| Formats | Roll (4" external diameter), Fanfold media |
| Width | Min 30 mm, Max 112 mm |
| Type | Continuous label, Continuous paper, Die-cut label, Black mark paper, Black mark label |
| Interfaces | Ethernet interface (100 Base-TX / 10 Base-T), USB 2.0 Type A |
| Autocutter | Yes included |
| Power Supply | External |
| Supply voltage | 100 ~ 240 V, 50 ~ 60 Hz |
| Power consumption | standby: Appx. 3 W, Printing: Appx. 30 W |
| Reliability | MCBF: 9.800.000 passes , MTBF: 88.000 Hours |
| Temperature / humidity | Printing: 10~35 °C ( 20~80 % RH), Storage: -20~60 °C ( 5~85 % RH) |
| Product dimensions | 310 x 283 x 261 mm (Width x Depth x Height) |
| Product weight | 12 kg |
| What's in the box | AC Adaptor, Driver and utilities (CD), Individual Ink Cartridges, Main unit, Maintenance box, Roll paper, User manual |
See page yield here
Product |
Content | |
|---|---|---|
 |
SJIC22P(C): Ink cartridge for TM-C3500 (Cyan)
C33S020602
|
32,5 ml
|
 |
SJIC22P(C): Ink cartridge for TM-C3500 (Black)
C33S020601
|
32,6 ml
|
 |
SJIC22P(M): Ink cartridge for TM-C3500 (Magenta)
C33S020603
|
32,5 ml
|
 |
SJIC22P(Y): Ink cartridge for TM-C3500 (Yellow)
C33S020604
|
32,5 ml
|
| SJMB3500: Maintenance Box for TM-C3500 (MOQ=6)
C33S020580
|
||
Product |
|---|
| Premium Matte Label - Continuous Roll: 51mm x 35m
C33S045417
|
| Premium Matte Label - Continuous Roll: 76mm x 35m
C33S045418
|
| Premium Matte Label - Continuous Roll: 102mm x 35m
C33S045419
|
| Matte Label - Continuous Roll: 76mm x 43m
1516052
|
| Matte Label - Continuous Roll: 105mm x 43m
1516054
|
| Premium Matte Ticket - Roll: 80mm x 50m
C33S045389
|
| Premium Matte Ticket - Roll: 102mm x 50m
C33S045390
|
| Premium Matte Label - Die-cut Roll: 102mm x 51mm, 650 labels
C33S045531
|
| Premium Matte Label - Die-cut Roll: 102mm x 76mm, 440 labels
C33S045532
|
| Premium Matte Label - Die-cut Roll: 102mm x 152mm, 225 labels
C33S045533
|
| Premium Matte Label - Die-cut Roll: 76mm x 51mm, 650 labels
C33S045534
|
| Premium Matte Label - Die-cut Roll: 76mm x 127mm, 265 labels
C33S045535
|
| High Gloss Label - Continuous Roll: 102mm x 33m
C33S045538
|
| High Gloss Label - Continuous Roll: 76mm x 33m
C33S045537
|
| High Gloss Label - Continuous Roll: 51mm x 33m
C33S045536
|
| High Gloss Label - Die-cut Roll: 102mm x 51mm, 610 labels
C33S045539
|
| High Gloss Label - Die-cut Roll: 102mm x 76mm, 415 labels
C33S045540
|
| High Gloss Label - Die-cut Roll: 102mm x 152mm, 210 labels
C33S045541
|
| High Gloss Label - Die-cut Roll: 76mm x 51mm, 610 labels
C33S045542
|
| High Gloss Label - Die-cut Roll: 76mm x 127mm, 250 labels
C33S045543
|
| PE Matte Label - Continuous Roll: 51mm x 29m
C33S045544
|
| PE Matte Label - Continuous Roll: 76mm x 29m
C33S045545
|
| PE Matte Label - Continuous Roll: 102mm x 29m
C33S045546
|
| PE Matte Label - Die-cut Roll: 102mm x 51mm, 535 labels
C33S045547
|
| PE Matte Label - Die-cut Roll: 102mm x 76mm, 365 labels
C33S045548
|
| PE Matte Label - Die-cut Roll: 102mm x 152mm, 185 labels
C33S045549
|
| PE Matte Label - Die-cut Roll: 76mm x 51mm, 535 labels
C33S045550
|
| PE Matte Label - Die-cut Roll: 76mm x 127mm, 220 labels
C33S045551
|
Please click HERE
Ultimate Epson TM-C3500 Printer Test
In this ultimate Epson TM-C3500 printing quality test we performed five tests; control, submerged, splashed, frozen, and outdoors. Our first scan of the labels was at 1 hour, the second at one week, the third at 1 year.
Before showing the images of our results here is a quick summary. When labels are printed on media designed specifically for the Epson TM-C3500 the ink does not bleed or smudge. UV light exposure after 1 year causes some light fading. The label that maintained its original quality the best after one year's time was the label in the freezer due to very low UV exposure. Paper labels scrape off with a fingernail when submerged for long periods but do not bleed. Periodically splashed labels maintain excellent quality. In all cases media that suits the application should be chosen.
Note: Our test labels are 4"x6". We scanned them at a much higher resolution to allow you to see closeups of the printing quality. Enjoy and call us if you have any questions. 1.800.903.6571
This was supposed to be the control but it was exposed to more sunlight than the other labels and after one year was slightly faded. We did have one label stored in the dark between books and it was perfect after one year but we don’t have a before/after shot for that label. The one below is the label that was exposed to an open/blind-covered window for a year.
We submerged a printed label in a plastic tote. Here are the results.
We splashed and dipped a label in the water of the plastic tote. We also sprayed it with a spray bottle. Here are the results.
This label was stored in the POSGuys.com break room freezer. Make sure to get freezer adhesive. The printing was not affected but our general adhesive was not as tacky as you would need for food labeling processes. For example when I first stuck a label on an already frozen box it was ready to peel off with little effort. It did better when you stuck the label on a room temperature product and then placed it in the freezer. The lack of UV light exposure resulted in the best color steadfastness of all of the test labels. Results below.
We stored the bottle behind our offices where cars drive by every day. We are based out of Bellingham, WA so there is a fair amount of rain with a period of low precipitation for about three months June - August. Unfortunately the label we were scanning for this test was lost a few weeks before the year was up. We have a photo of the bottle we used to test the adhesive strength but unfortunately no high resolution scan. The label was heavily worn but there was minimal color fading where paper media was intact.
We also did some testing of the TM-C3500 on non-approved generic media. (Who doesn’t want to save a buck?) We learned that the media does make a big different. Quality was inferior on the non-approved labels with lighter blacks, softer edges, and less saturated color. See the results below.

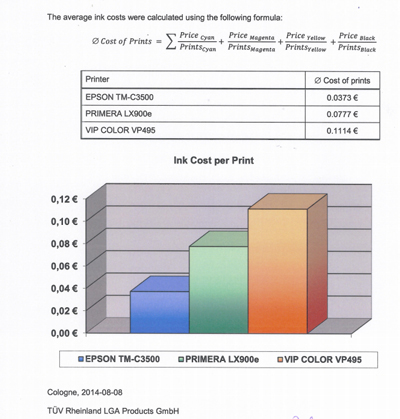

How does the TM-C3500 ink cost compare to other printers on the market? A study by TUV Rheinland compared the ink costs of the TM-C3500, Primera LX900e, and VIP Color VP495 and found that per print it was lower. Check out the test details here.
The TM-C3500 printer is 360dpi x 360dpi for Speed Mode and 720 dpi x 360 dpi for Quality Mode. Note that all of the images you see in this post were printed on Quality Mode.
The Epson TM-C3500 is an excellent label printer that is well suited for operations that need a print on demand label or who print small batches of custom labels as new products come out. (pharmacy, food, freezer, chemical labeling and more) The quality of printing is fair as it is a high resolution printer but it does not print ultra-realistic photographic images. We printed photos to show you what that looks like, it is not offset label quality but it IS high quality. The printer is priced fantastic for what it can do and the media has come down in price since the earlier Epson TM-C3400. If you are looking for extremely durable, affordable, fast, no bleed, color labeling this is the printer for you.
