Gemini label finishing system for sheets, boxes and short-run packaging
The Gemini label cutting system uses a fully automatic lifting and feeding platform for through cutting, half cutting, creasing and marking. It is suited to short-runs, customised printing and packaging industries, offering a cost-effective and smart finishing solution for creative sheet-based applications.
Automatic sheet feeding and cutting for labels, cards and small packaging
Gemini is an automatic sheet feeding and cutting system designed to automatically load and cut without the need for an operator. It is equipped with a Graphtec CE8000 plotter and can cut adhesive sheets, silk screen prints, shop material prints and digital prints on cardboard.
The system uses a newly designed ramp style loading tray and wheel system. Sheets are automatically loaded into the plotter interruption free, cut, and then dispensed into the output tray.
Graphtec CE8000 plotter with automatic loading and precise cutting
The Gemini plotter includes an integrated sensor reader to read marks after each sheet is loaded. This works with the cutting management software and supports cut precision of 0.3 mm.
Its compact desktop design makes it suitable for smaller workplaces while still supporting operator-free sheet feeding for short-run finishing jobs.
- Uses an industry Graphtec CE8000 plotter
- Compact desktop solution for smaller workplaces
- Automatic ramp style feeder tray for operator-free job runs
- Proprietary software for precise loading and cutting
- Average 150 sheets per job using supported sheet sizes
Perforation, kiss cutting, die cutting and creasing
Gemini can handle a variety of thicknesses and sheet sizes including A4, A3, SRA3, SA3, Letter, Tabloid and Tabloid Extra. It supports labels, business cards, shaped business cards, small boxes and more.
Perforation Cuts
Small-dot perforation cuts for sheet-based finishing applications.
Kiss Cuts
Half cuts suitable for adhesive sheet and label cutting workflows.
Die Cuts
Heavy cuts for breaking through the media where required.
Creasing
Creasing support for small boxes and packaging applications.
Supported Materials
Cardboard from 200 to 350 gsm and adhesive sheets from 170 gsm.
Sheet Sizes
A4, A3, SA3, SRA3, Letter, Tabloid and Tabloid Extra.

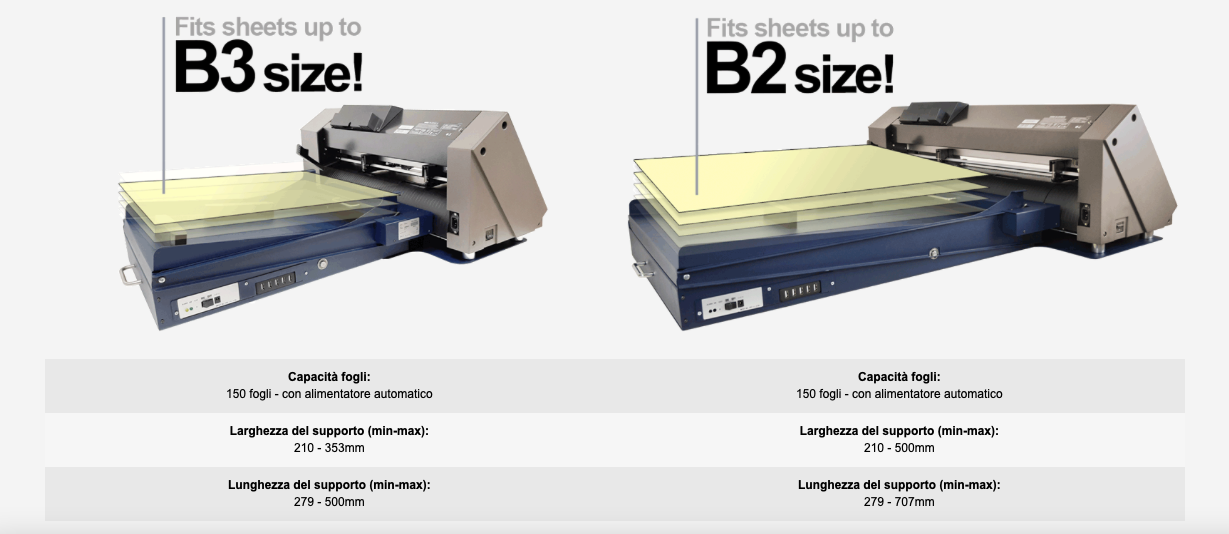

Core model specifications
The Gemini page lists model GMN40 with automatic sheet feeding and defined media width and length ranges.
- Model: GMN40
- Auto sheet capacity: average 150 sheets with auto feeder
- Media width range: 210–353 mm
- Media length range: 279–500 mm
- Cut precision: 0.3 mm
- Standard cutting position for kiss cutting labels
- Second cutting position for breaking through media to create small packs, tags and more
Software for cutting lines and PDF vector paths
The Gemini Cutting Manager is proprietary software that allows users to cut lines and paths from a PDF vector graphic.
Additional functions enable management of die cutting sheet material using cross cut and dashed cut features, so greeting cards, POS and packaging board material can also be cut.
No more simple boxes
With the newer version of Gemini, small box cutting has been improved. Through a creasing tool, not included, it is possible to create real creases in addition to the classic half-cut.
This creates a higher-performance finishing workflow for small boxes and packaging-focused applications.
Watch the Gemini finishing system in action
View the Gemini video to see the sheet feeding, cutting and finishing workflow in action.
Brochure and user manual
Use the links below to open the Gemini brochure and user manual in a new tab.
Gemini Digital Finishing System Brochure
Sheet-based Gemini brochure covering the digital finishing system.
Download BrochureGemini User Manual
User manual for the Gemini system.
Open User ManualA strong fit for short-run labels, cards and small packaging
Gemini is best suited to businesses that need automatic sheet feeding and cutting for short-run customised print finishing. It is especially useful where adhesive sheets, cardboard, shaped cards, labels, POS material or small packaging need kiss cuts, die cuts, perforation or creasing.
Ready to improve your sheet-based finishing workflow?
Tell us which sheet sizes, substrates and applications you need to finish, including labels, shaped cards, business cards, POS material or small boxes. Intellistor will help confirm whether the Gemini finishing system is the right fit.
